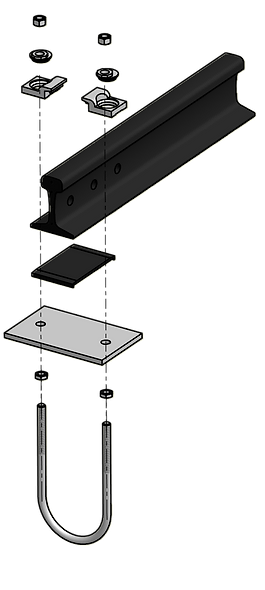

STACKER & RECLAIMER ASSEMBLIES
AL2524 and AL2530 Uniclip. Our adjustable crane rail clips are a major component of our Stacker & Reclaimer assemblies.
-
Designed for Australian conditions.
-
The AL2524 & AL2530 Uniclips, our adjustable crane rail clips are a major component of our Stacker & Reclaimer assemblies.
-
The unique cam design allows for easy rail alignment and also provides a very positive locking device when tightened.
-
Specifically designed to secure fixed ground rails on continuous concrete beams.
-
Our low-profile clips and assemblies can also be used where machines have hydraulic clamps and side rollers.
-
Our assemblies have been used extensively throughout the Pilbara and Western Australia in the Iron Ore, Salt and Bauxite mining industries and on the East coast of Australia in the Coal industry.
-
M24 grade 8.8 bolt.
-
The AL2524 Uniclip allows for 20mm of horizontal rail adjustment.
-
Recommended side load capacity of 130kN (13.26 tonnes).
-
Its low profile allows it to be used with cranes that are fitted with guide rollers.
-
A special Vulcanized Rubber Nose with a low coefficient of friction is fitted to suit the particular rail selected. The nose allows for rail rolling tolerances, also provides a controlled downward pressure on the rail allowing the rail to expand longitudinally.
-
M30 grade 8.8 bolt.
-
The AL2530 Uniclip allows for 15mm of horizontal rail adjustment.
-
Recommended side load capacity of 200 kN (22.48 tonnes).
-
Its low profile allows it to be used with cranes that are fitted with guide rollers.
-
A special Vulcanized Rubber Nose with a low coefficient of friction is fitted to suit the particular rail selected. The nose allows for rail rolling tolerances, also provides a controlled downward pressure on the rail allowing the rail to expand longitudinally.
