CRANE RAIL
Crane rails are essential components in material handling and lifting systems. These rails are engineered to support the heavy loads and dynamic stresses associated with crane operations, providing a stable and durable track for smooth and efficient movement.
DIN 536 STANDARD
Our DIN 536 (German Institute for Standardisation) crane rails ensure to meet high-quality specifications for strength and durability, making them suitable for a range of industrial applications. Their robust design allows them to withstand the intense forces and frequent use in environments such as manufacturing facilities, ports, and warehouses. The exceptional quality of our rails, along with widespread customer recognition and end-user approvals, makes our crane rails the preferred choice in the Australian and global markets.

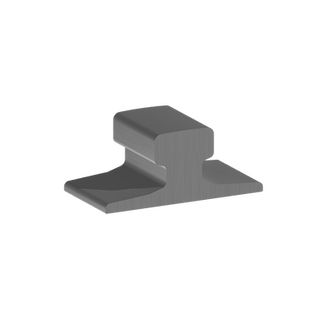

DIN CRANE RAILS (DIN 536)
Profile | Weight | Height (H) | Base width (B) | Head width (C) | Web (E) |
|---|---|---|---|---|---|
kg/m | mm | mm | mm | mm | |
A45 | 22.10 | 55.00 | 125.00 | 45.00 | 24.00 |
A55 | 31.80 | 65.00 | 150.00 | 55.00 | 31.00 |
A65 | 43.10 | 75.00 | 175.00 | 65.00 | 38.00 |
A75 | 56.20 | 85.00 | 200.00 | 75.00 | 45.00 |
A75S | 63.60 | 85.00 | 200.00 | 75.00 | 75.00 |
A100 | 74.30 | 95.00 | 200.00 | 100.00 | 60.00 |
A120 | 100.00 | 105.00 | 220.00 | 120.00 | 72.00 |
A150 | 150.30 | 150.00 | 220.00 | 150.00 | 80.00 |
Grades | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
MPa | MPa | % | min. HB (for info. only) | |
70 kg (700) | ≥ 690 | ≥ 355 | ≥ 12 | ≥ 200 |
90 kg (900) | ≥ 880 | ≥ 440 | ≥ 8 | ≥ 260 |
110 CrV (1100) | ≥ 1080 | ≥ 640 | ≥ 7 | ≥ 320 |
R340 | ≥ 1150 | ≥ 600 | ≥ 7 | ≥ 340 |
Grades | C | Mn | Si | P | S | V | Cr |
|---|---|---|---|---|---|---|---|
% | % | % | % | % | % | % | |
70 kg (700) | 0.40 – 0.60 | 0.80 – 1.20 | ≤ 0.350 | ≤ 0.045 | ≤ 0.045 | n/a | n/a |
90 kg (900) | 0.60 – 0.80 | 0.80 – 1.30 | ≤ 0.500 | ≤ 0.045 | ≤ 0.045 | n/a | n/a |
110 CrV (1100) | 0.65 – 0.85 | 0.90 – 1.30 | ≤ 0.500 | ≤ 0.040 | ≤ 0.040 | 0.05 – 0.15 | 0.20 – 0.80 |
R340 | 0.80 – 0.95 | 0.90 – 1.40 | ≤ 0.500 | ≤ 0.045 | ≤ 0.045 | 0.05 – 0.15 | 0.20 – 0.80 |
